PCE 9433102 Adapter SSDdän GS16/3 campingstekker CEE

Adapter SSD GS16/3, rated voltage/frequency: 200-250V~ / 50+60Hz, IP protection class: IP44, Outlet: safety socket (Austrian/German System) 16A 250V

Code:
943.3100
Beschikbaarheid:
Voorraad



8,97

943.3100

Adapter SSD GS16/3, rated voltage/frequency: 200-250V~ / 50+60Hz, IP protection class: IP44, Outlet: safety socket (Austrian/German System) 16A 250V

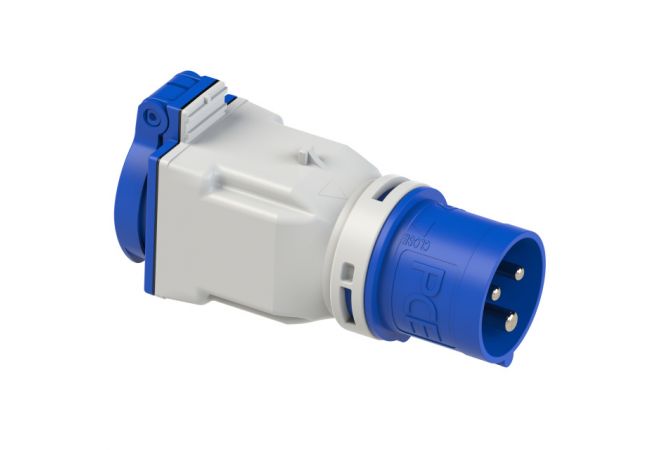

Adapter SSD GS16/3

  • Adapter SSD GS16/3 (Export)
  • housing material: PC/ABS
  • rated current: 16A
  • number of poles: 3 (2P+PE)
  • clock-position: 6h
  • rated voltage/frequency: 200-250V~ / 50+60Hz
  • contacts: brass nickel plated
  • Entry: 1x CEE-plug 16A 3p 6h
  • Outlet: safety socket (Austrian/German System) 16A 250V
  • ready wired
  • IP protection class: IP4
  • Name Adapter SSD GS16/3 (Export)
  • Number of socket outlets with protective contact (SCHUKO) 1
  • Number of socket outlets Danish standard (earthing pin)
  • Protection None
  • Material housing Plastic
  • Contact material CuZn
  • Surface treatment contacts Nickel-plated
  • Power supply/connection possibility Built-up plug
  • Number of poles mains connection 3
  • Type of mains connection CEE 16 A
  • Handling Portable
  • Degree of protection (IP) IP44
  • Colour Grey


Productsheet (9433100_EN_(1).PDF, 447 Kb) [Download]

Productsheet 2 (Adapter_163-SSD.PDF, 344 Kb) [Download]
