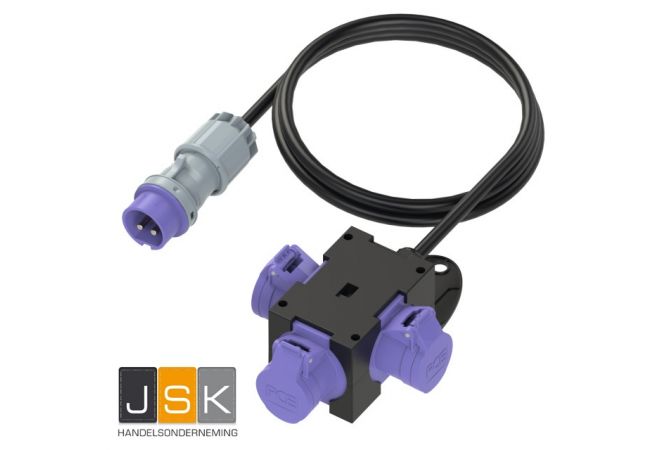

PCE 9430024 Verteilerkasten Kunststoff mobil ST.ANTON 3x16/2 24V 1,5m2G2,5H07St16 m.B IP44
Serie St. Anton Low Voltage
- Mobile thermoplastic distribution box - series ST.ANTON IP44 with handle
- 1xCEE extra-low voltage plug 16A 2p 24V
- 1,5m cable H07RN-F 2x2,5mm2 black
- 3xCEE-socket 16A 2p 24V
- distribution box is ready wired for using
Name
- Distribution box plastic mobile ST.ANTON 3x16/2 24V 1.5m2G2.5H07St16 m.B IP44
- CEE socket outlet 16 A
- 3x16A2p24V
- CEE socket outlet 32 A
- Number of socket outlets with protective contact CEE 7/3 (type F)
- Number of socket outlets Danish standard (earthing pin)
- Other fixtures and/or empty locations
- Protection None
- Leakage current type
- Earth leakage switch None
- Material housing Plastic
- Contact material CuZn
- Surface treatment contacts
- Power supply/connection possibility
- Feeder cable with plug
- Number of poles mains connection
- Diameter cable entry
- Type of mains connection CEE 16 A
- Cable length m 1.5
- Handling Portable
- Degree of protection (IP) IP44
- Colour Black
- Height mm 80
- Width mm 78
- Depth mm 115
