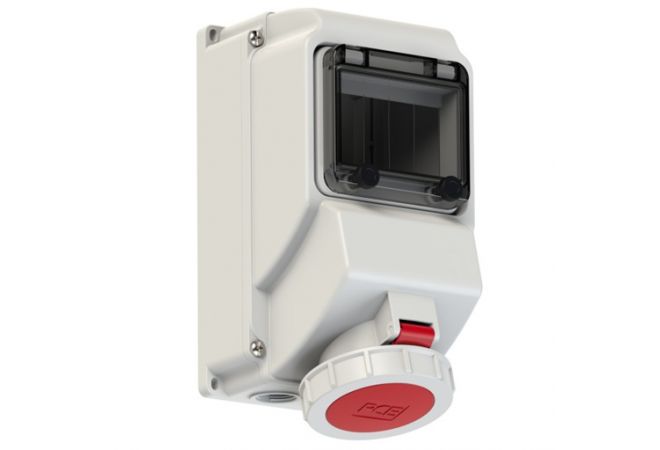

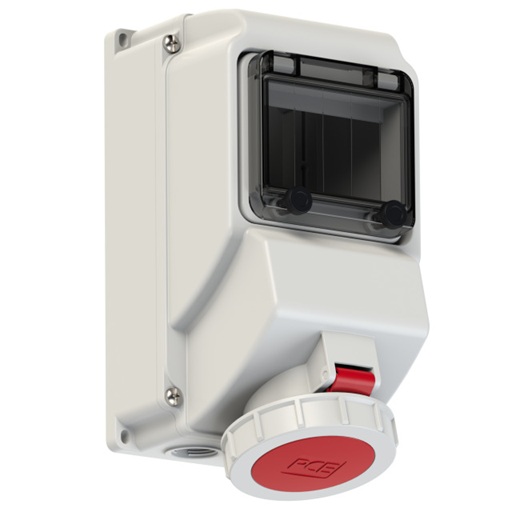

PCE 75342-6 CEE-wall mounted socket mit Fenster 32A 4p 6h IP67 - 103800/752423-6
Productinformatie "PCE 752342-6 CEE-wall mounted socket mit Fenster 32A 4p 6h IP67 - 103800/752423-6"
Technische specificaties:
- CEE-wall mounted socket with window 32A 4p 6h IP67
- housing material: PC/ABS
- rated current: 32A
- number of poles: 4 (3P+PE)
- clock-position: 6h
- rated voltage/frequency: 380-415V~ / 50+60Hz
- contacts: brass nickel plated
- connection technology: screw terminals
- cable entry: top, bottom, rear
- inc. threaded blind cap
- with hinged window (5 modules) and DIN rail
- IP protection class: IP66/IP67
