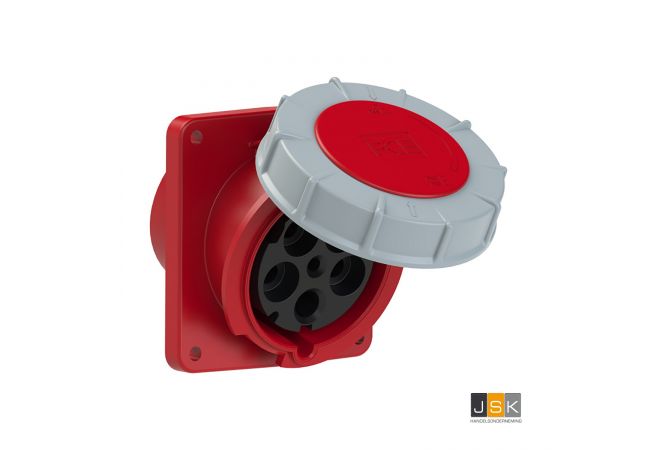

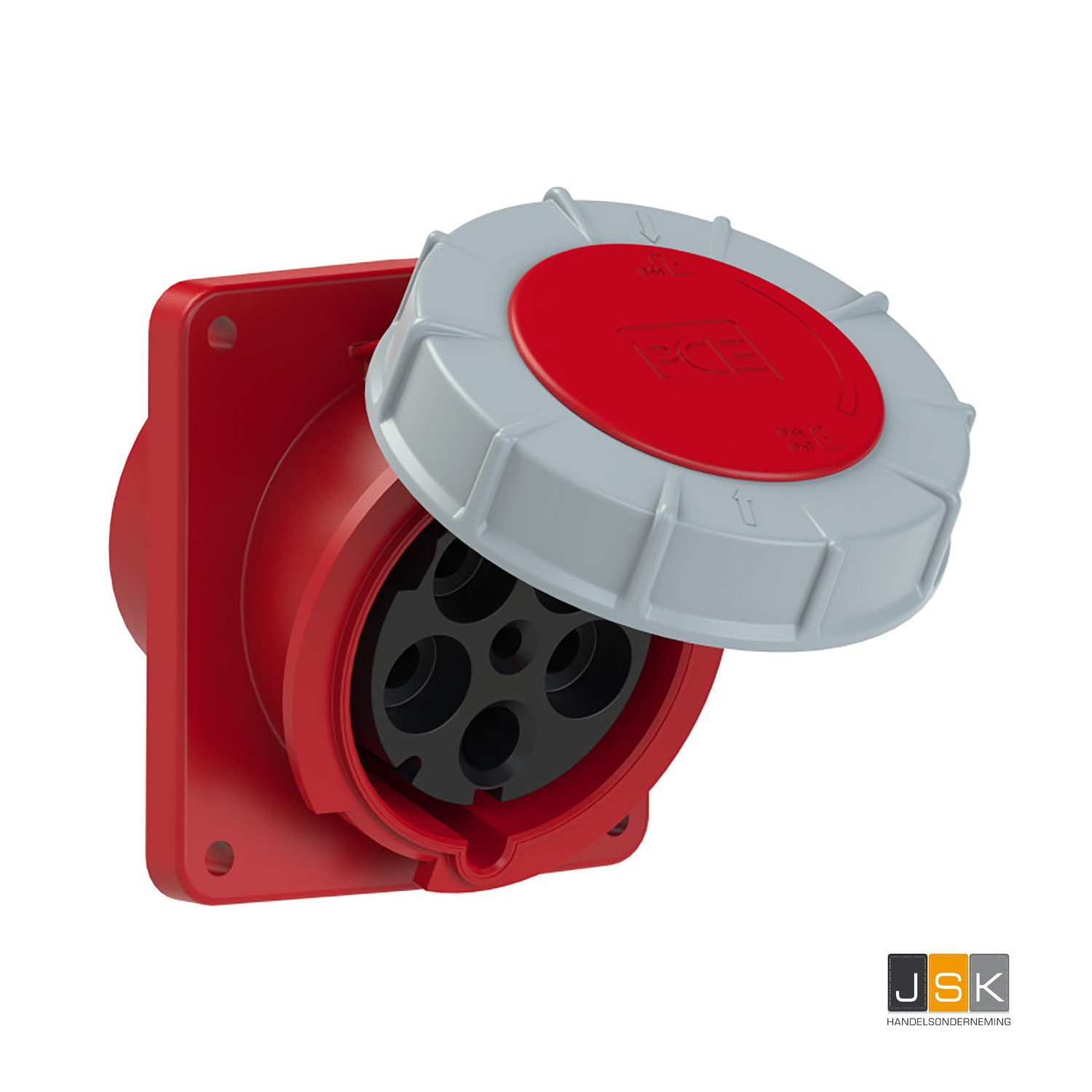

PCE 445-6 | CEE-flanged socket sloping (120x130) 125A 5p 6h IP67 POWER TWIST | Dimensions (Flange/fixing center): 120x130 mm / 100x108 mm | 400V 200/346V~ - 240/415V~ / 50+60Hz
Productinformatie "CEE-aanbouwapparaatstekker recht IP 125, 5-polig, 400 V, 6 h 125 A*"
- CEE-flanged socket sloping (120x130) 125A 5p 6h IP67 POWER TWIST
- housing material: PA6
- rated current: 125A
- number of poles: 5 (3P+N+PE)
- clock-position: 6h
- rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
- contacts: brass, with lamellar spring (CuBe)
- connection technology: frame terminals with screws
- dimensions (flange/fixing center): 120x130 mm / 100x108 mm
- IP protection class: IP66/IP67
