PCE 413-4 | CEE inbouw wandcontactdoos schuin 16A 3p 4h - flens 70 x 85 mm - IP44/IP54 - EAN 9003399836299

PCE 413-4 | CEE inbouw wandcontactdoos schuin 16A 3p 4h - flens 70 x 85 mm - IP44/IP54 - EAN 9003399836299

Code:
PCE 413-4 / 103150
Beschikbaarheid:
Voorraad



13,72

NB
PCE 413-4 / 103150

PCE 413-4 | CEE inbouw wandcontactdoos schuin 16A 3p 4h - flens 70 x 85 mm - IP44/IP54 - EAN 9003399836299

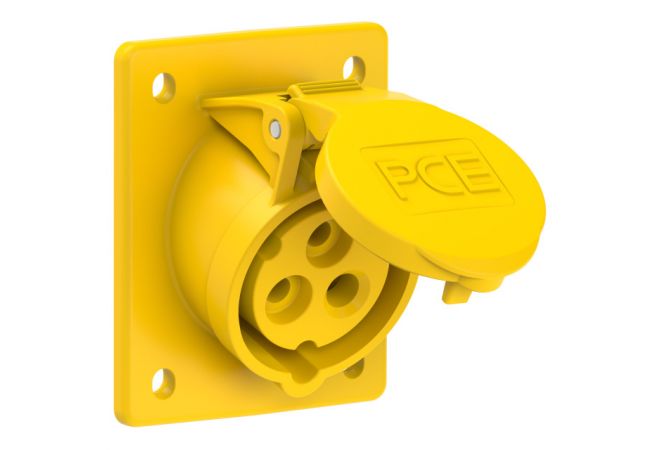

Productinformatie "CEE-flanged socket sloping (70x85mm) 16A 3p 4h IP44/IP54"

  • CEE-flanged socket sloping (70x85mm) 16A 3p 4h IP44/IP54
  • housing material: PA6
  • rated current: 16A
  • number of poles: 3 (2P+PE)
  • clock-position: 4h
  • rated voltage/frequency: 100-130V~ / 50+60Hz
  • contacts: brass
  • connection technology: screw terminals
  • dimensions (flange/fixing center): 70x85 mm / 50x65 mm
  • IP protection class: IP44/IP54



Artikel:

  • Name CEE-flanged socket sloping (70x85mm) 16A 3p 4h IP44/IP54
  • IEC-amperage A 16
  • Voltage according to EN 60309-2
  • 110 V (50+60 Hz) yellow
  • Number of poles 3
  • Clock hour position h 4
  • Identification colour Yellow
  • RAL-number
  • Degree of protection (IP) IP44
  • Connection system Screwed terminal
  • Angle of plug Angled
  • Material Plastic
  • Contact material CuZn
  • Surface treatment contacts Untreated
  • Flange size vertical mm 85
  • Drill hole distance vertical mm 65
  • Flange size horizontal mm 70
  • Drill hole distance horizontal mm 50

artikel

type

lengte

aders

doorsnede



104812

N103015016Z

10 m

3

1,5 mm²



113559

N253025016Z

25 m

3

2,5 mm²




Prductsheet (413-4_EN.PDF, 264 Kb) [Download]

Afmetingen (413-4_ABDschraeg70x85IP44.PDF, 136 Kb) [Download]
