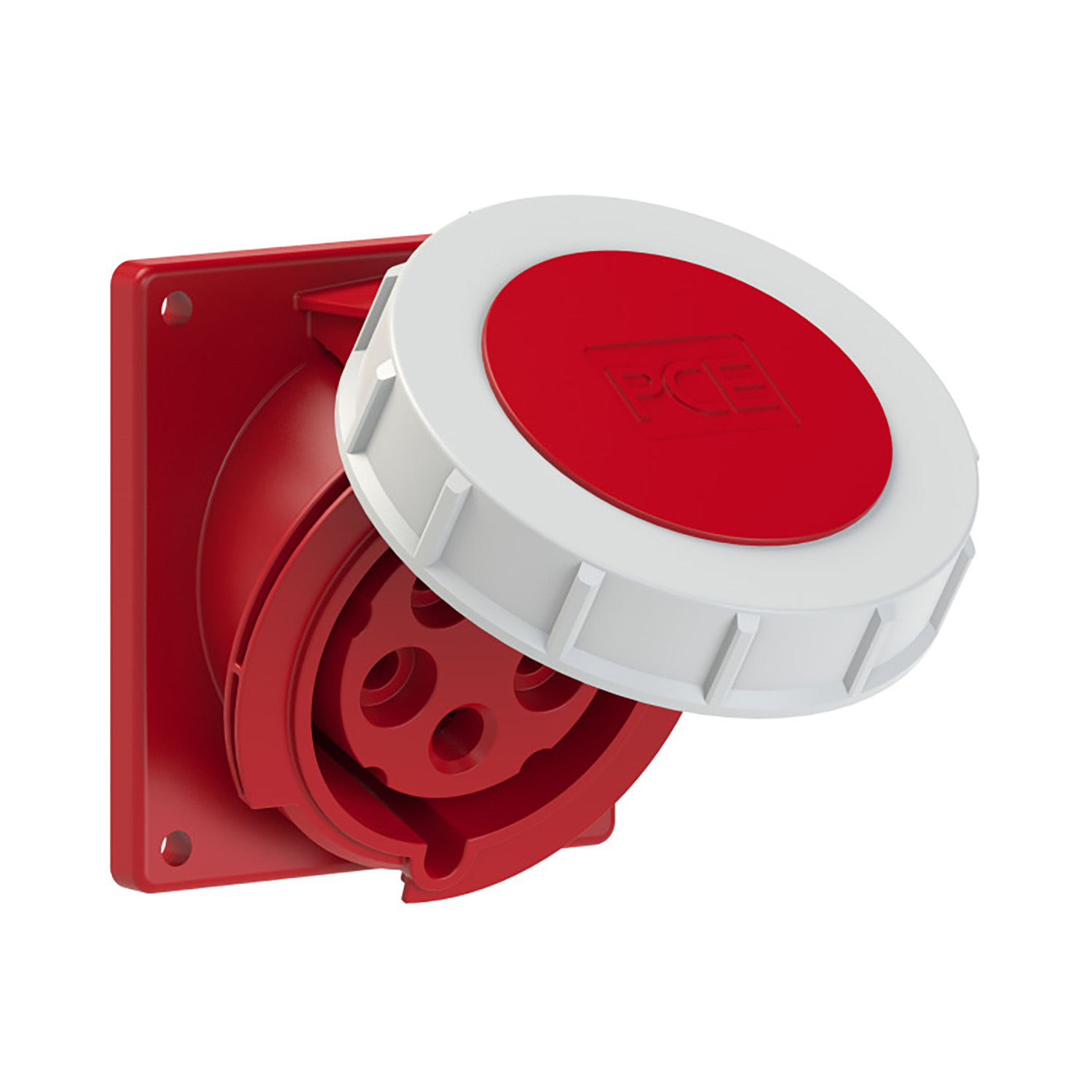

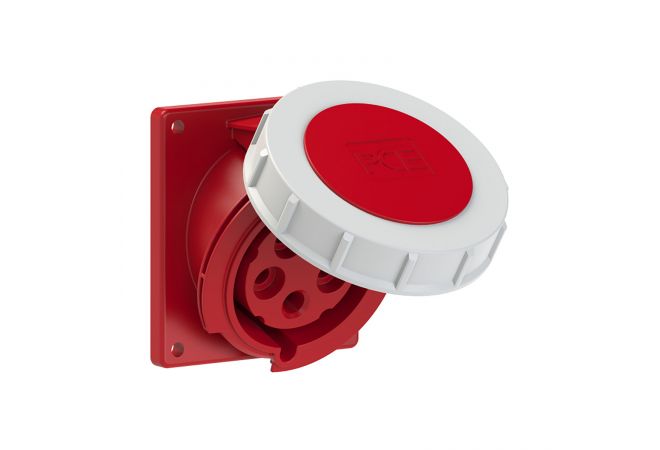

4252-6 CEE-aanbouwdoos schuin IP 67, 5-polig, 400 V, 6 h, 32 A Flens 92x100 - Gatafstand 77x85 - 634.2526-T/103215 EAN: 4028232087640
Productinformatie "CEE-aanbouwdoos IP 67, 5-polig, 400 V, 6 h, schuin 32 A"
Anbaudose schräg 32A 5p 6h IP67 Twist (Flansch 92x100 - Lochabstand 77x85), mit Schraubklemmen, Gehäusematerial: PA6, Kontakte: Messing
- CEE-flanged socket sloping (92x100mm) 32A 5p 6h IP67
- housing material: PA6
- rated current: 32A
- number of poles: 5 (3P+N+PE)
- clock-position: 6h
- rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
- contacts: brass
- connection technology: screw terminals
- dimensions (flange/fixing center): 92x100 mm / 77x85 mm
- IP protection class: IP67
