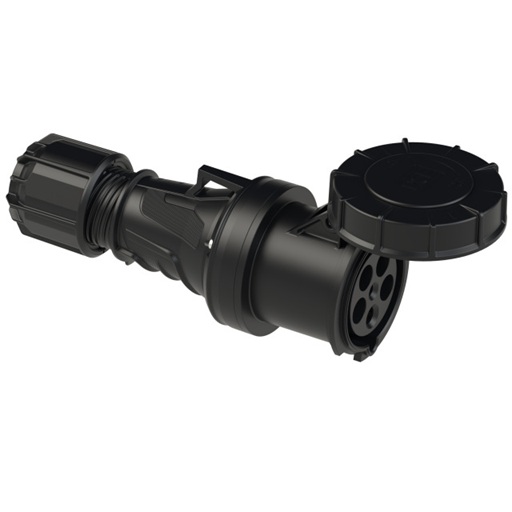

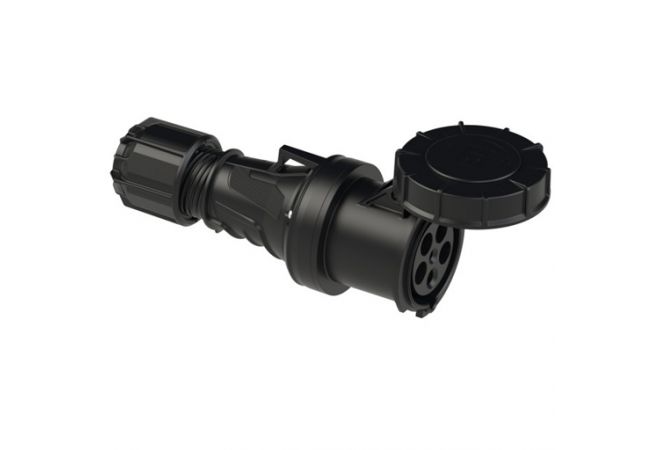

235-6XS CEE contrastekker 63A 5-polig 400V 6h, zwart IP67 Power Twist theater - 107546 | 9003399713613
Productinformatie "CEE-contrastekker 63 A, 5-polig, 400 V, 6 h, IP 67 met vernikkelde contacten type Midnight"
Eigenschappen:
- CEE-connector 63A 5p 6h IP67 POWER TWIST black
- housing material: PA6
- rated current: 63A
- number of poles: 5 (3P+N+PE)
- clock-position: 6h
- rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
- contacts: brass, with lamellar spring (CuBe)
- connection technology: frame terminals with screws
- IP protection class: IP66/IP67
- Merk: Sirox PCE
- Name CEE-connector 63A 5p 6h IP67 POWER TWIST black
- IEC-amperage A 63
- Number of poles 5
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Clock hour position h 6
- Identification colour Black
- RAL-number 9005
- Degree of protection (IP) IP67
- Connection system Screwed terminal
- Angle of plug Straight
- Cable entry Gland nut
- Material Plastic
- Contact material CuZn
- Surface treatment contacts Untreated
Levertijd uit voorraad plm. 2-3 werkdagen onder voorbehoud van beschikbaarheid. Afbeeldingen van foto's kunnen afwijken en zijn ter indicatie.
