135-6 CEE-wall mounted socket 63A 5p 6h IP67 POWER TWIST | 831.356 / 102638 Sirox PCE

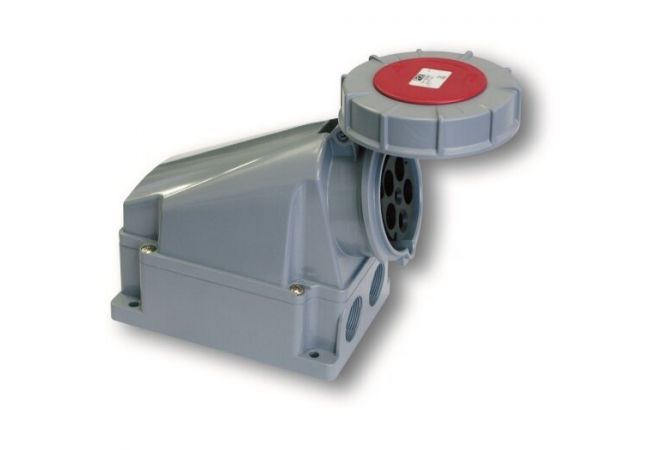

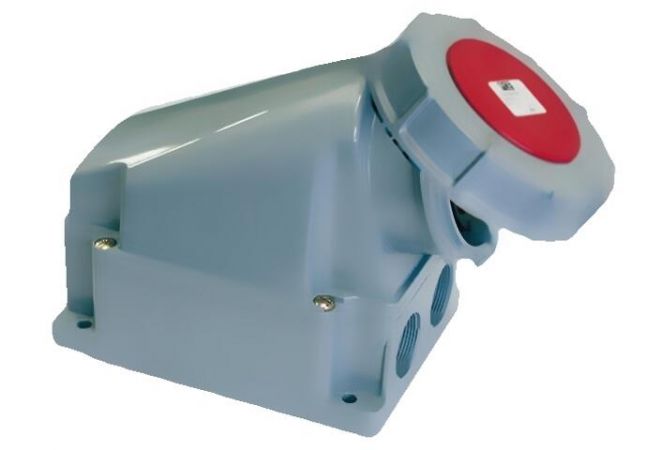

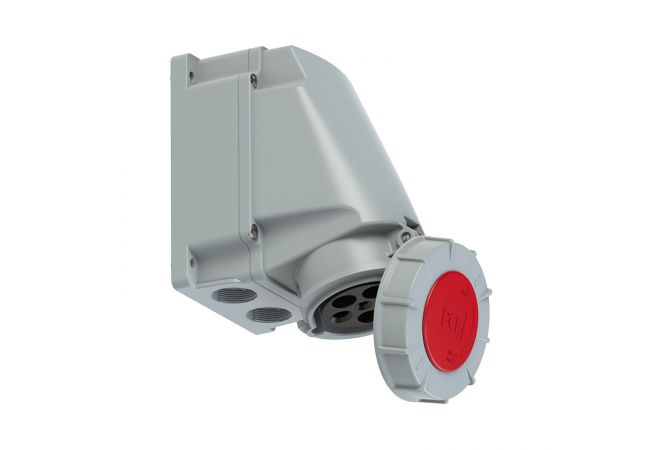

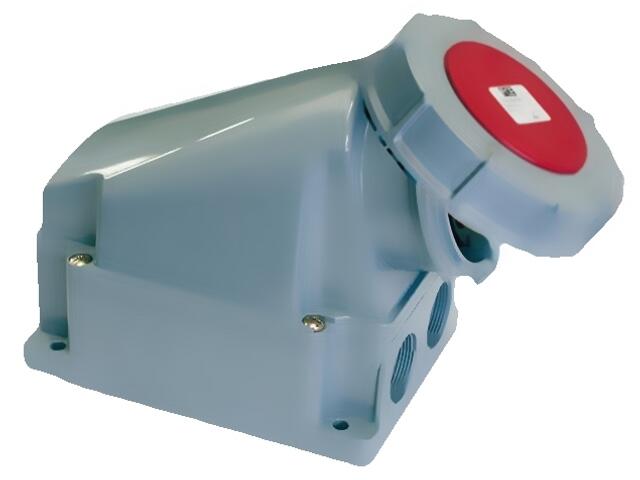

CEE-wall mounted socket 63A 5p 6h IP67 POWER TWIST
housing material: PC/ABS
rated current: 63A
number of poles: 5 (3P+N+PE)
clock-position: 6h
rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
contacts: brass, with lamellar spring (CuBe)
connection technology: frame terminals with screws
cable entry: top, bottom, rear
inc. threaded blind cap
IP protection class: IP66/IP67

Contactstoppen 63A

• Slagvaste polyamide 63A CEE contactstoppen conform IEC 60309
• Met standaard vernikkelde contacten voor een betere corrosiebescherming
• Uurstand : 6 h
