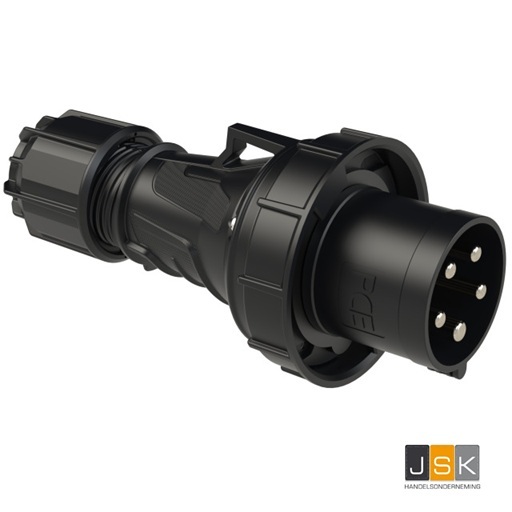

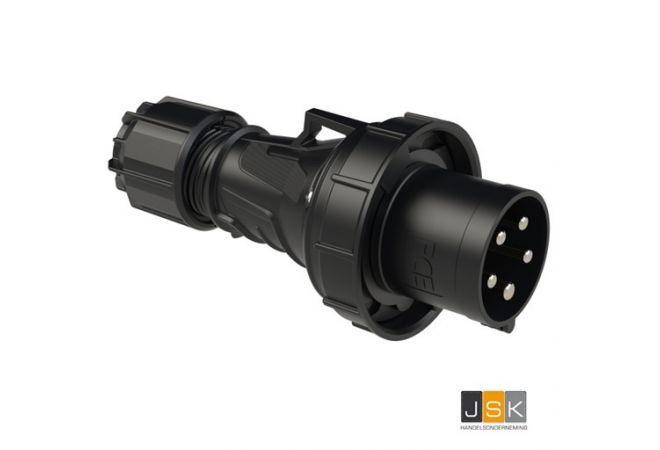

035-6xs CEE-plug 63A 5p 6h IP67 POWER TWIST black, IP67 Power Twist theater Black Edition | 9003399681363 | 830.356.01/107545
- CEE-plug 63A 5p 6h IP67 POWER TWIST black
- housing material: PA6
- rated current: 63A
- number of poles: 5 (3P+N+PE)
- clock-position: 6h
- rated voltage/frequency: 200/346V~ - 240/415V~ / 50+60Hz
- contacts: brass nickel plated, with pilot pin
- connection technology: frame terminals with screws
- IP protection class: IP66/IP67
- Name CEE-plug 63A 5p 6h IP67 POWER TWIST black
- IEC-amperage A 63
- Number of poles 5
- Voltage according to EN 60309-2 400 V (50+60 Hz) red
- Clock hour position h 6
- Identification colour Red
- RAL-number 9005
- Degree of protection (IP) IP67
- Connection system Screwed terminal
- Cable entry Gland nut
- Angle of plug Straight
- Material Plastic
- Contact material CuZn
- Surface treatment contacts Nickel-plated
